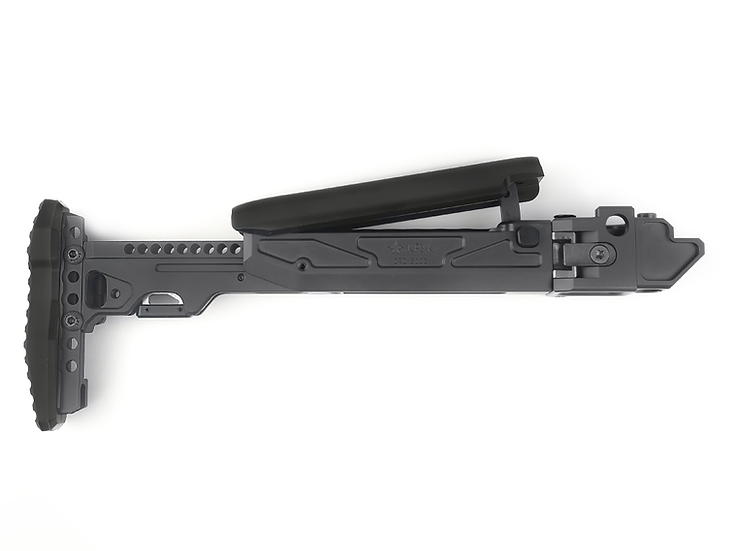

KPYK CRC 5002 9033 Folding Buttstock for AK

The CRC 5002/9033 is an adjustable stock with a folding adapter:

1 – Weight: 510 grams / 1.12lbs
2 – Adjustable length from 17.5 cm to 22 cm / 6.8″ to 8.7″
3 – Cheek riser has a maximum elevation of 2 cm and provides four positions.
4 – Buttplate is height-adjustable, with a range of +/- 3 cm.
5 – Comes with standard attachment points for a sling and a QD base.
6 – The construction combines aluminum for high-stress components and polyamide for the cheek riser.
7 – Approximately 90% of the parts are milled from solid aluminum billets.

To secure the buttstock in a folded position, the following options are used:

1. A magnetic block that is installed on the landing spots near the buttplate. It provides the best fixation for the buttstock in a folded position on the receiver or on a mounted dovetail rail.

2. A clamp that is installed on the landing spots near the buttplate instead of the magnet. It is used to secure the buttstock on a mounted dovetail rail. It has height adjustment to fit it under a specific dovetail rail.

Compatibility

– SLR107R
– SLR107R-11E
– SLR107R-12
– WASR-10
– Other civilian versions of AKM and AK-74 rifles with fixed stocks

Coating

Cerakote ceramic paint

Color

Black
